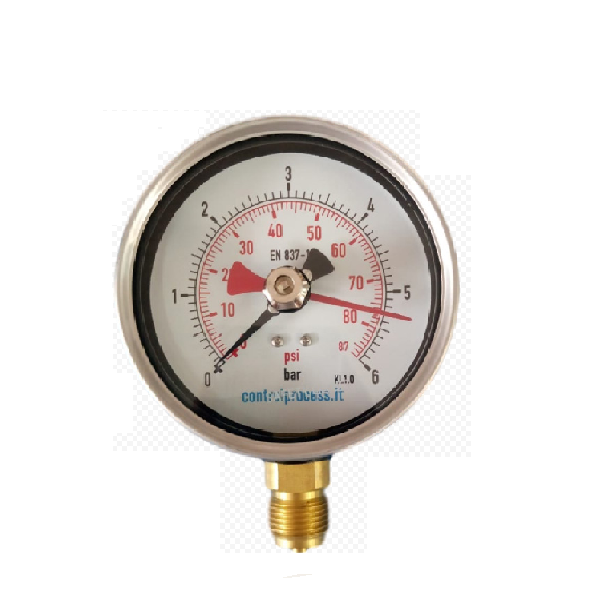

Manometro Attacco Radiale con indice rosso di trascinamento Meccanico

Model  MIRIM100

  •   bourdon tube pressure gauge
  •  case stainless steel nominal size 100 mm
  •  lowel mount
  •  process connection copper alloy
  •  pressure element copper alloy
  •  movement  copper alloy
  •  accuracy class 1% f.s.
  •  dial aluminium white with pointer stop pin
  •  index aluminium
  •  window sefety glass
  •  design EN 837-1
  •  temperature ambient -40 … +60°C fluido +80°
  •  set/ drag pointer : adjusta ble red ste  pointer on window
